Description

Product Overview

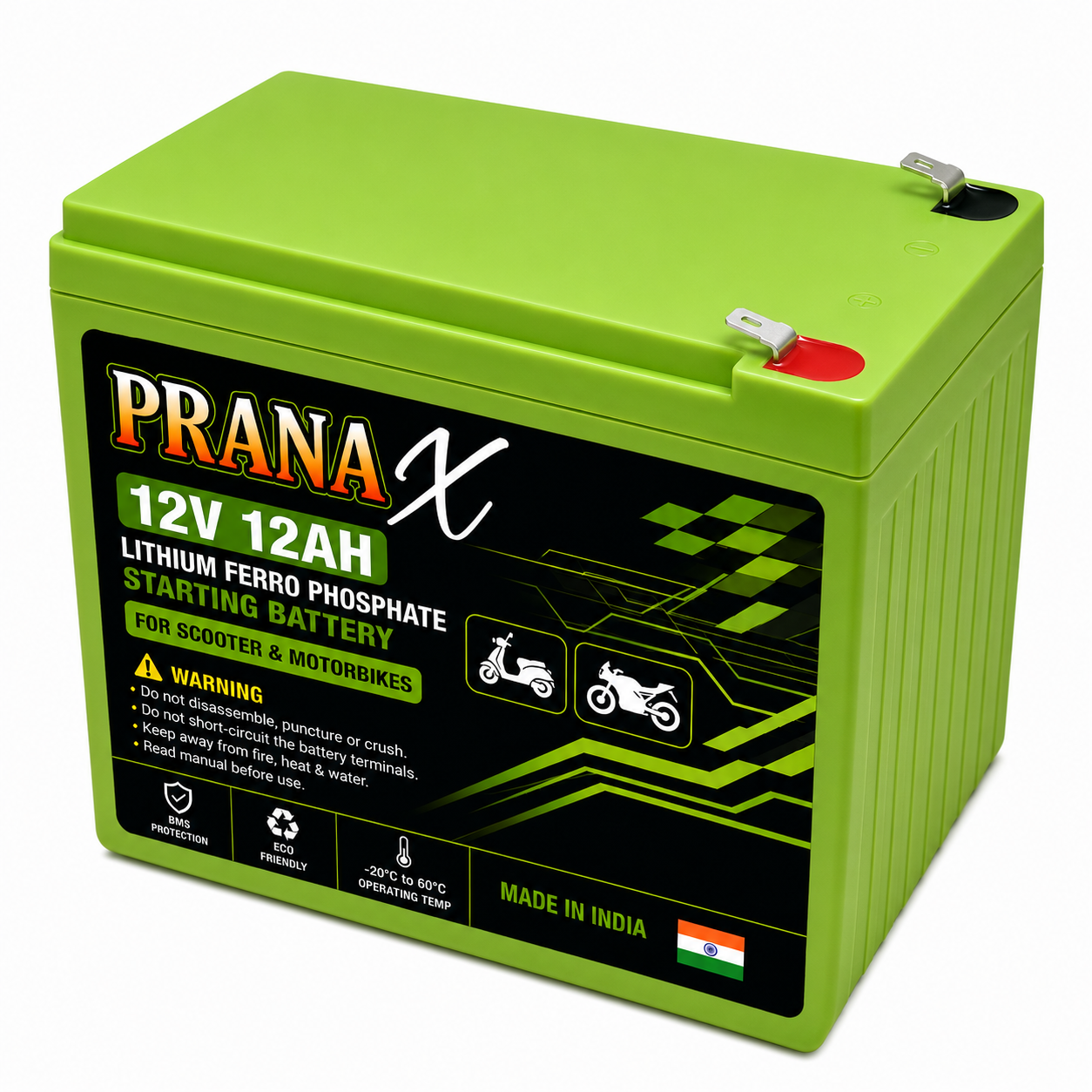

The Pranax 12V 12Ah LiFePO4 Lithium Starting Battery is a lightweight, high-performance battery designed for vehicles equipped with a compatible 12V charging system. It is built using premium 32700 LiFePO4 cells, pure nickel strip interconnections, and a robust 4S 100A Smart BMS that provides advanced protection and stable power delivery.

Compared with traditional lead-acid batteries, Pranax offers faster charging, longer cycle life, lower weight, and superior starting performance.

Key Features

• 12.8V Nominal Voltage

• 12Ah Capacity

• 153.6Wh Energy

• Premium 32700 LiFePO4 Cells

• Pure Nickel Strip Connections

• 4S 100A Smart BMS

• 2000+ Charge Cycles

• Lightweight Design

• Maintenance-Free

• Fast Charging

• Excellent Starting Power

• Eco-Friendly Chemistry

• Made in India

Smart BMS Protection Features

The built-in 4S 100A Smart BMS protects the battery from:

• Overcharge Protection

• Over-discharge Protection

• Overcurrent Protection

• Short Circuit Protection

• Cell Imbalance Protection

• Temperature Protection

Technical Specifications

Nominal Voltage: 12.8V

Rated Capacity: 12Ah

Energy: 153.6Wh

Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)

Cell Type: 32700 Cylindrical Cells

Cell Configuration: 4S (4 Cells in Series)

Interconnection Material: Pure Nickel Strips

BMS Type: 4S 100A Smart BMS

Charging Voltage: 14.6V

Recommended Charging Current: Up to 6A

Peak Current Support: Up to 100A (BMS Rated)

Cycle Life: 2000+ Cycles

Operating Temperature: -20°C to 60°C

Battery Dimensions: 151 × 97 × 98 mm

Approximate Weight: 1.45 kg

Terminal Type: Standard Motorcycle Battery Terminals

Maintenance: Maintenance-Free

Country of Origin: Made in India

Advantages Over Lead-Acid Batteries

• Up to 70% Lighter

• Longer Lifespan

• Faster Charging

• Higher Starting Current

• Zero Maintenance

• Better Voltage Stability

• Environment Friendly

Use With Caution

• Use only with a proper and compatible 12V charging system.

• Do not use lead-acid battery chargers. Use only a suitable LiFePO4 charger.

• Installation by a qualified technician is strongly recommended.

• If the battery becomes unusually hot, stop using it immediately and disconnect it safely.

• Lithium batteries may catch fire, explode, or cause injury if improperly used, damaged, short-circuited, overcharged, punctured, crushed, or exposed to excessive heat.

• Keep away from fire, sparks, water, and direct sunlight.

• Do not short-circuit the terminals.

• Do not puncture, crush, disassemble, modify, or tamper with the battery.

• Keep out of reach of children.

Safety Information

• Always inspect the battery before installation and use.

• Stop use immediately if the battery swells, leaks, emits odor, smoke, or becomes unusually hot.

• Do not expose the battery to temperatures above recommended limits.

• Store in a cool, dry place away from flammable materials.

• Always wear appropriate protective equipment when handling batteries.

• Follow all local regulations for battery disposal and recycling.

Disclaimer

This battery must be used only with compatible 12V electrical and charging systems. Improper installation, charging, storage, modification, misuse, or physical damage may result in fire, injury, property damage, or battery failure. The manufacturer and seller are not responsible for damages arising from improper use or installation. Please verify specifications and suitability before purchase.

Package Contents

1 × Pranax 12V 12Ah LiFePO4 Lithium Starting Battery
