40KM+ Range 36V 350W Smart Hub Motor Kit & 36V 15.6AH Lithium Ion Hailong Case Battery For Electric Bicycle Conversion

Original price was: ₹22,999.00.Current price is: ₹19,999.00.

Sale End!

Description

Kit Features:
•Top Speed 50KM/H.
•One Charged Mileage 40KM
•36V 15.6AH Detachable Hailong Case Lithium Ion Battery
•36V 350Watt Hub Motor.

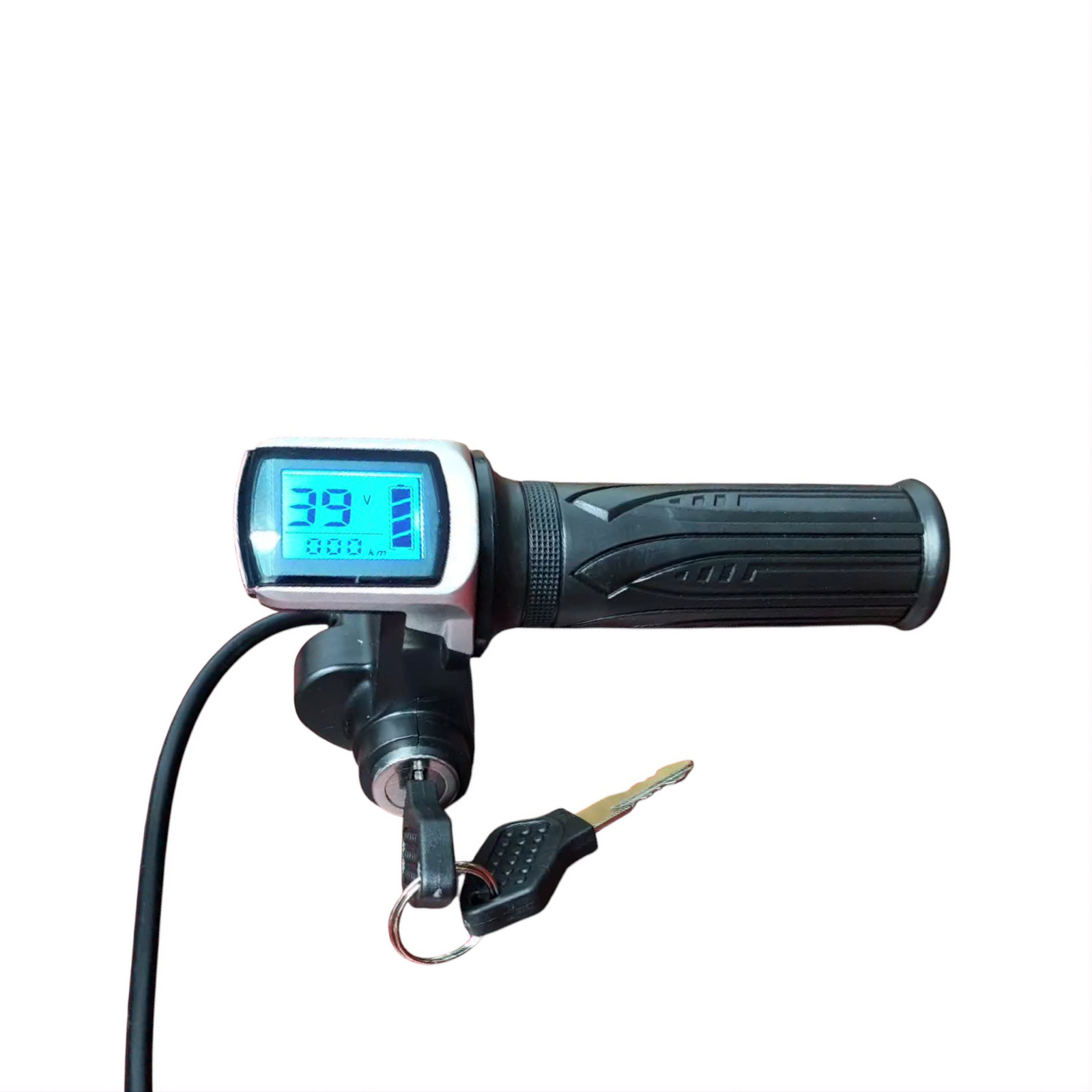

•5 INCH Display With Speedometer, Odometer & Battery Indication.
•9 LED Powerfull Headlight & Horn.
•Electric Brake.
•Upto 150KG Person Ride.

Battery Features:

  • 10S6P Configuration with 100% New Genuine BIS Approved Actual Capacity Battery.
  • High Capacity, Small Size, Light Weight Fast Charging Compare To Lead Acid Or Others Batteries.
  • Life Cycle Approx 1500 So Can Easily Sustain 3-5 Years.
  • BMS Protction For Over Charge, Over Dischgarge And Short Circuit Protection.
  • Small Thing, Powerfull being.

Kit Specifications:

  • Kit Input Voltage – 24V/36V/48V
  • Rated Wattage: 350w
  • Rated Current: 14.5AMPS
  • Rated Load RPM: 328
  • Torque (NM): 61



Warranty Summary:

  • 6 Months On Kit
  • 2 Years Manufacturer Warrenty On Battery

Covered in Warranty:

  • Manufacturing Defects.



Battery Informations:
Battery: Liithium Ion 36V Battery Pack, Capacity: 15.6AH, Battery Type: Rechargeable Lithium Ion Battery, Input Voltage: 42V, Output Voltage: 36V-42V. Product’s Life: Charge And Discharge Circulation Approx 1500. Basic Information:- Cell Count: 60, Cell Type: Lithium Ion, Configuration: 10 Sets In Series 6 Sets In Parallel(10S6P), Built-In Bms Protection With Over-Charge, Over-Discharge, Short Circuit Protection. Charge Mode: CC & CV – Use a Special Lithium Ion Battery Dedicated Charger To Charge Up To 36V.

Kit Information:

36 Volt 350 Watt Hub Motor. This Motor Is Great For Those Wanting To Make Their Own Custom Electric Vehicle, Whether It’s A Scooter.

Note: This Motor Is Capable Of Rotation In Either The Clockwise Or Counterclockwise Direction not available.

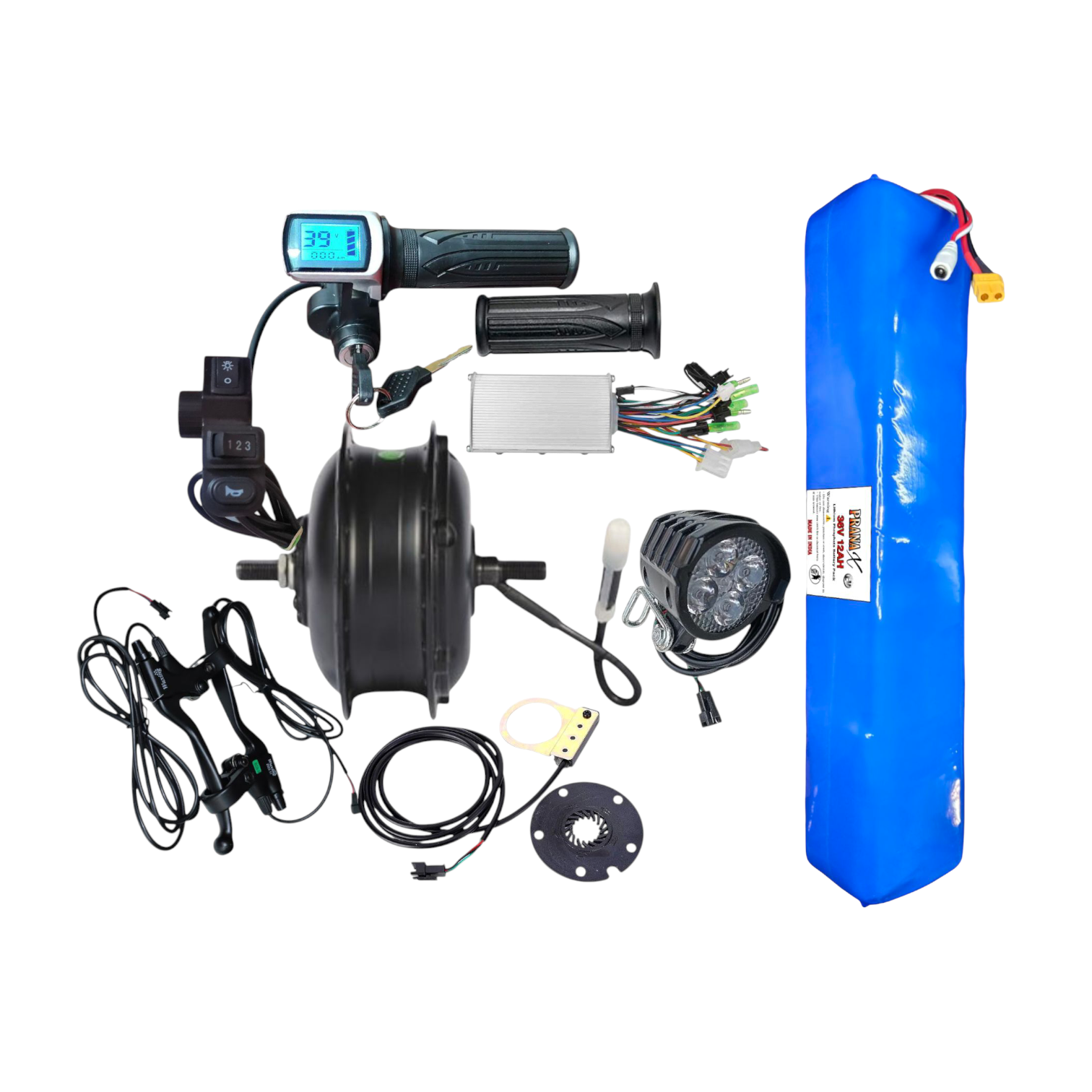

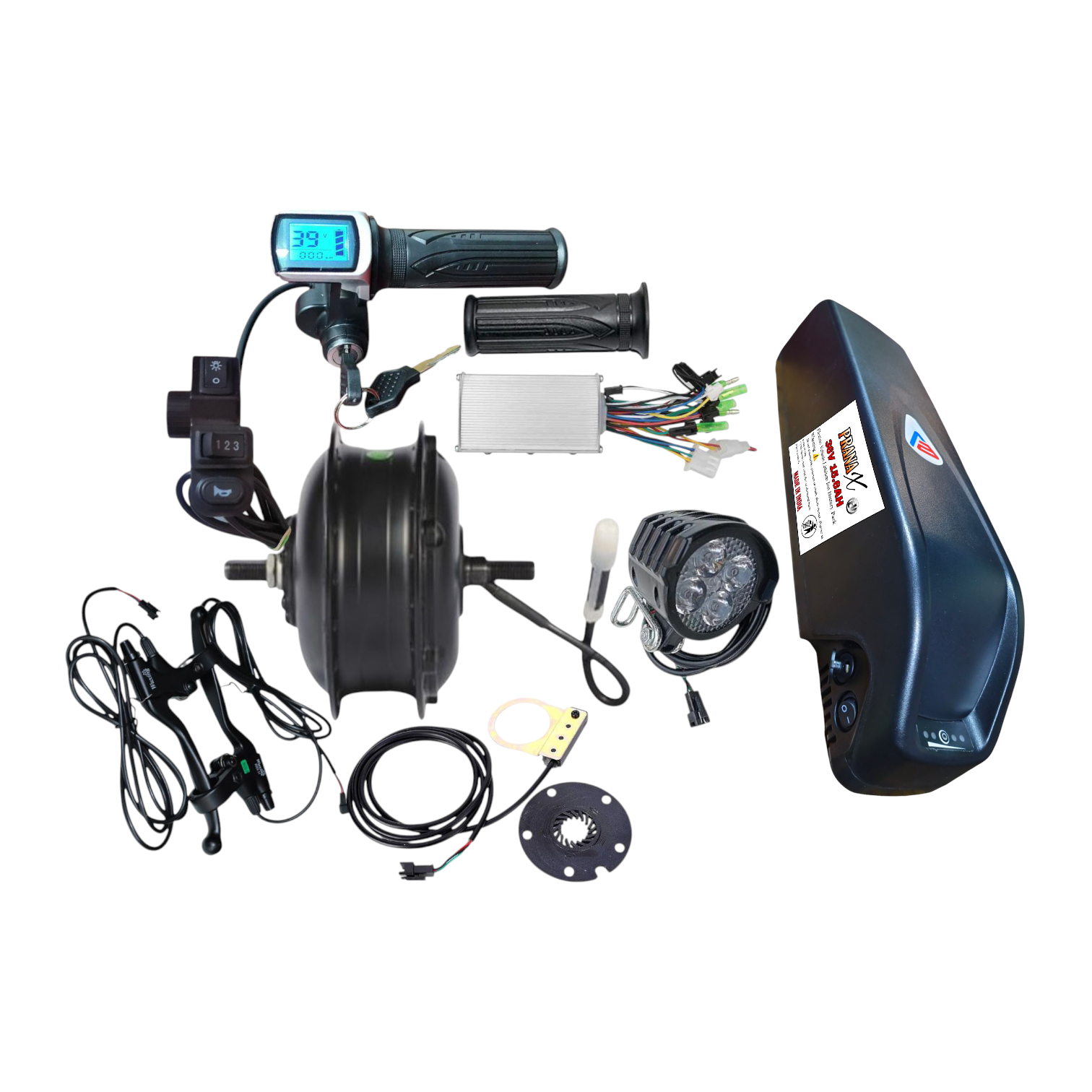

Packing Details:

  • 1pcs x DC 36v 350w Hub Motor
  • 1pcs x 36V 15.6AH Lithium Ion Hailong Case Battery
  • 1pcs x Motor Controller
  • 1pcs x Padel Assist
  • 1pcs x Throttle & brake Lever
  • 1pcs x Headlight
  • 1pcs x Lock Switch & Key
