Description

Product Description:

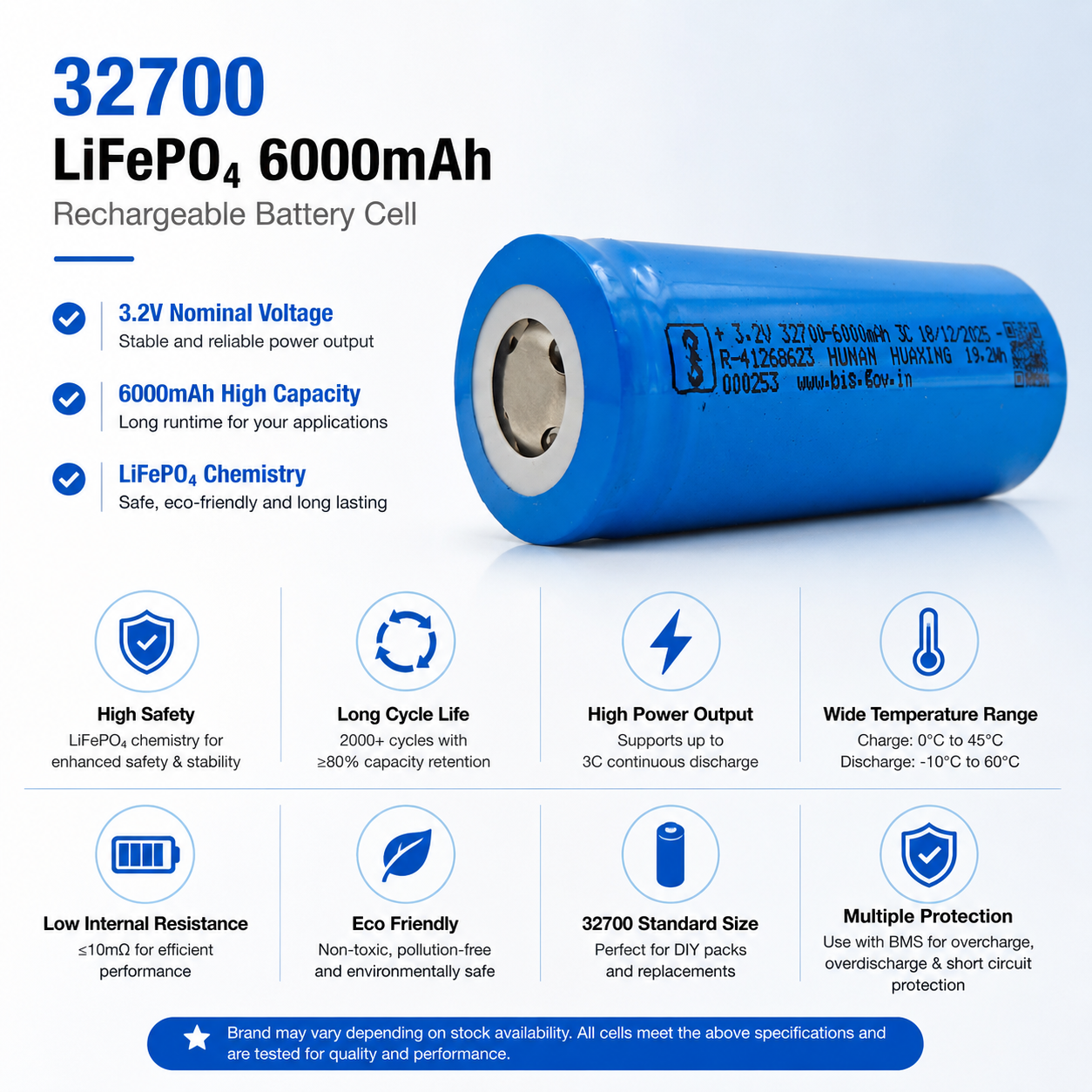

The 32700 LiFePO₄ 6000mAh Rechargeable Battery Cell is a high-performance lithium iron phosphate (LiFePO₄) cylindrical cell designed for electric vehicles, solar energy storage, battery pack manufacturing, UPS systems, portable power stations, inverters, robotics, and industrial applications. Built for long service life, high safety, and stable performance, this cell delivers 6000mAh nominal capacity, 3.2V nominal voltage, low internal resistance, and supports up to 3C continuous discharge with excellent cycle life. LiFePO₄ chemistry offers superior thermal stability, enhanced safety, and longer lifespan compared to conventional lithium-ion cells, making it ideal for demanding energy storage applications.

Key Features:

• Premium Grade 32700 LiFePO₄ Rechargeable Cell
• 6000mAh Nominal Capacity
• 3.2V Nominal Voltage
• Long Cycle Life (2000+ Cycles)
• High Safety Lithium Iron Phosphate Chemistry
• Low Internal Resistance
• Supports Up to 3C Continuous Discharge
• Excellent Thermal Stability
• High Power Output
• Ideal for Battery Pack Manufacturing
• Technical Specifications
• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Cell Size: 32700
• Nominal Capacity: 6000mAh
• Typical Capacity: Up to 6150mAh
• Nominal Voltage: 3.2V
• Maximum Charging Voltage: 3.65V
• Discharge Cut-off Voltage: 2.0V
• Standard Charging Current: 0.2C
• Standard Discharge Current: 0.2C
• Rapid Charging Current: 0.5C
• Maximum Continuous Discharge Current: 3C
• Maximum Pulse Discharge Current: 5C
• Internal Resistance: ≤10mΩ
• Cycle Life: 2000+ Cycles (≥80% Capacity Retention)
• Weight: Approximately 141g
• Dimensions: Approximately Ø32 × 70.5mm

Applications:

• Electric Vehicles (EV)
• Electric Scooters
• Electric Bicycles
• Solar Energy Storage Systems
• UPS Battery Backup
• Portable Power Stations
• Inverters
• Battery Pack Manufacturing
• Robotics Projects
• Industrial Equipment
• DIY Energy Storage Projects
• Operating Temperature
• Charging Temperature: 0°C to 45°C
• Discharging Temperature: -10°C to 60°C
• Storage Temperature:
• Up to 1 Month: -20°C to 45°C
• Up to 3 Months: -20°C to 35°C
• Up to 12 Months: -20°C to 25°C

Safety Instructions:

• Use only a compatible LiFePO₄ battery charger.
• Never short-circuit the battery terminals.
• Do not puncture, crush, disassemble, or expose the cell to fire.
• Spot welding is recommended for battery pack assembly. Avoid direct soldering on the cell.
• Always use a suitable Battery Management System (BMS).
• Store in a cool, dry place away from heat, moisture, and direct sunlight.

Package Includes:

1 × 32700 3.2V 6000mAh LiFePO₄ Rechargeable Battery Cell

Note:

Brand shown in product images is for reference only. The actual brand supplied depends on current stock availability.
