Product Description:

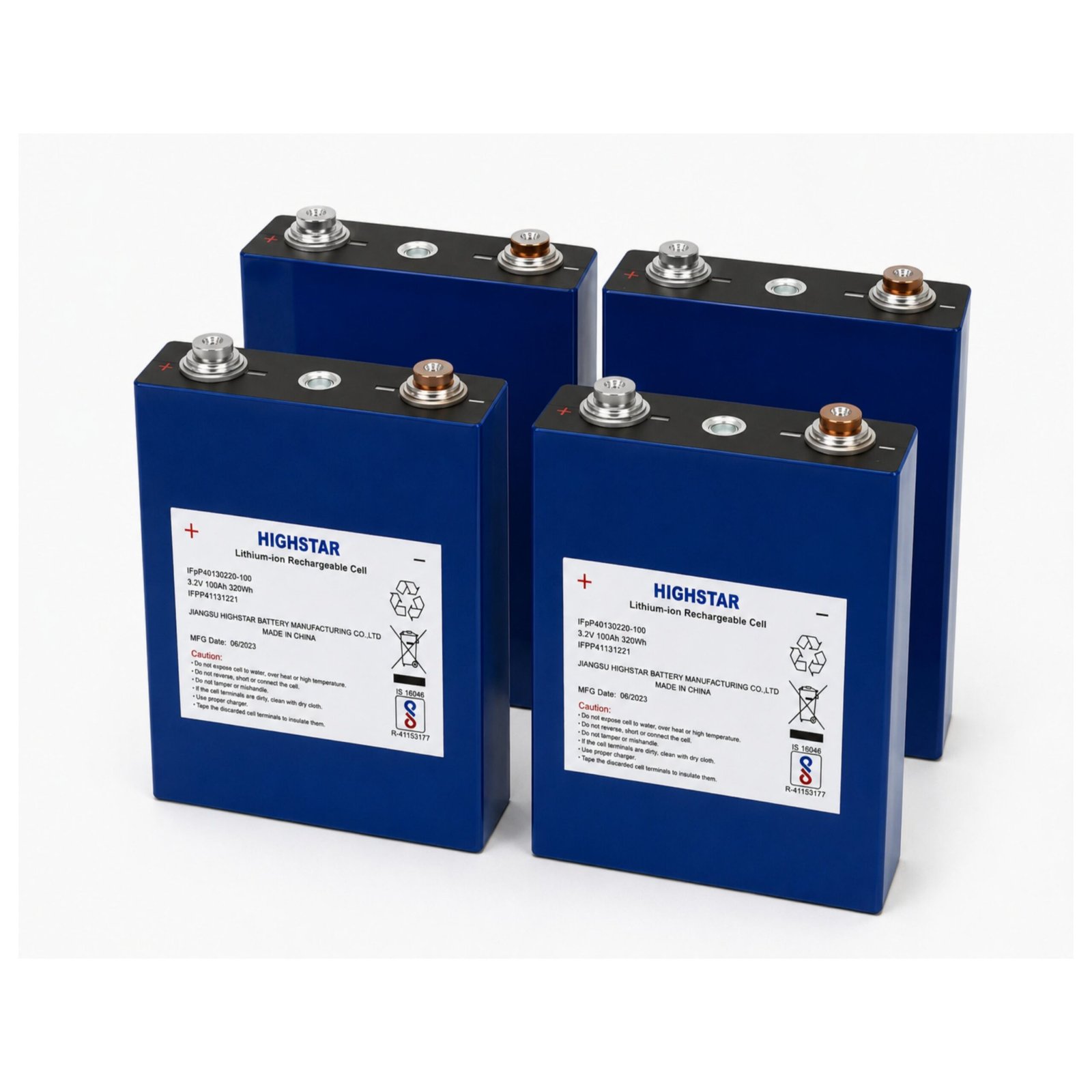

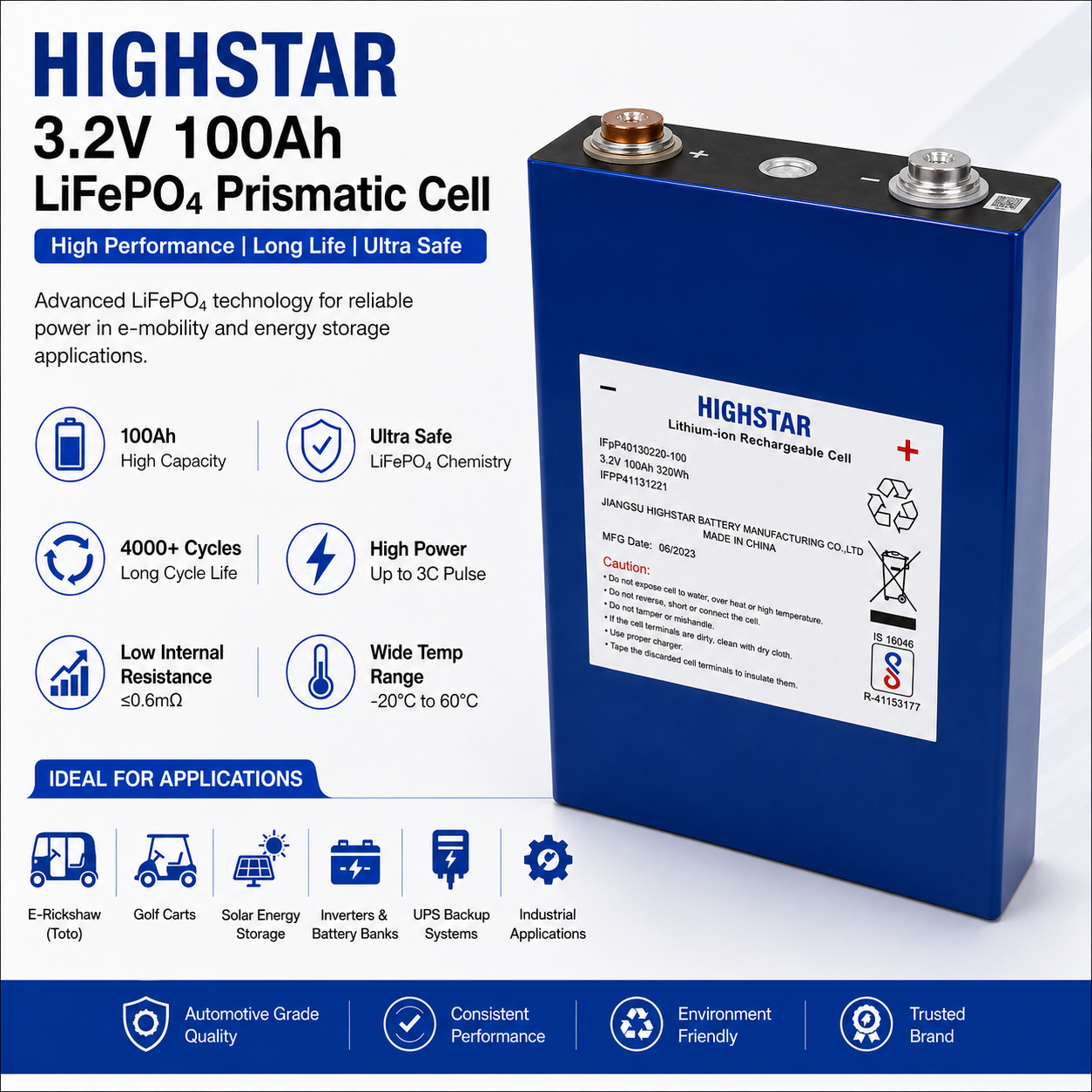

The Highstar IFpP40130220-100 3.2V 100Ah LiFePO₄ Prismatic Battery Cell is a premium automotive-grade lithium iron phosphate battery designed for E-Rickshaws (Toto), Electric Vehicles (EVs), golf carts, solar energy storage systems, battery banks, UPS systems, and industrial energy storage applications. Featuring high energy density, ultra-low internal resistance, excellent thermal stability, and a long cycle life, this cell delivers reliable power and outstanding performance for demanding applications.
Built with advanced LiFePO₄ technology, it offers 3500+ charge/discharge cycles, high safety, and consistent performance, making it an ideal choice for battery pack manufacturers and energy storage projects.

Key Features:

• Genuine Highstar LiFePO₄ Prismatic Cell
• Automotive Grade Battery Cell
• 100Ah High Capacity
• 3.2V Nominal Voltage
• 4000 Charge/Discharge Cycles
• Ultra Low Internal Resistance (≤0.6mΩ)
• High Power Output (Up to 3C Pulse Discharge)
• Excellent Thermal Stability
• Long Service Life
• Ideal for E-Rickshaw (Toto), EV & Solar Battery Packs

Technical Specifications:

• Brand: Highstar
• Model: IFpP40130220-100
• Battery Chemistry: Lithium Iron Phosphate (LiFePO₄)
• Cell Type: Prismatic Battery Cell
• Nominal Voltage: 3.2V
• Nominal Capacity: 100Ah
• Energy: 320Wh
• Maximum Charging Voltage: 3.65V
• Standard Charging Current: 0.5C
• Maximum Charging Current: 1C
• Maximum Pulse Discharge Current: 3C (30 Seconds)
• Discharge Cut-off Voltage: 2.5V
• Internal Resistance: ≤0.6mΩ
• Cycle Life: 4000 Cycles (80% Capacity Retention)
• Charging Temperature: 0°C to 45°C
• Discharging Temperature: -20°C to 60°C
• Recommended Storage Temperature: 15°C to 35°C
• Dimensions (L × W × T): 220 × 130.2 × 40.2 mm
• Weight: Approx. 2.3kg
• Terminal Type: M6 Threaded Terminal

Applications:

• E-Rickshaw (Toto)
• Electric Vehicles (EV)
• Golf Carts
• Solar Energy Storage Systems
• Battery Banks
• Home & Commercial Inverters
• UPS Backup Systems
• Energy Storage Systems (ESS)
• Marine Applications
• DIY Battery Pack Manufacturing

Safety Instructions:

• Use only a compatible LiFePO₄ battery charger.
• Always use a suitable Battery Management System (BMS).
• Use bus bars and the supplied terminal bolts to connect multiple cells. Do not solder or weld directly to the terminals.
• Ensure correct polarity before connecting the battery pack.
• Tighten terminal bolts securely without over-tightening.
• Do not short-circuit the battery terminals.
• Do not puncture, crush, disassemble, or expose the battery to fire or excessive heat.
• Charge only within the recommended temperature range (0°C to 45°C).
• Store the battery in a cool, dry place away from moisture and direct sunlight.
• Keep away from children and always follow proper battery handling procedures.

Package Includes:
1 × Highstar IFpP40130220-100 3.2V 100Ah LiFePO₄ Prismatic Battery Cell
